OBLIK

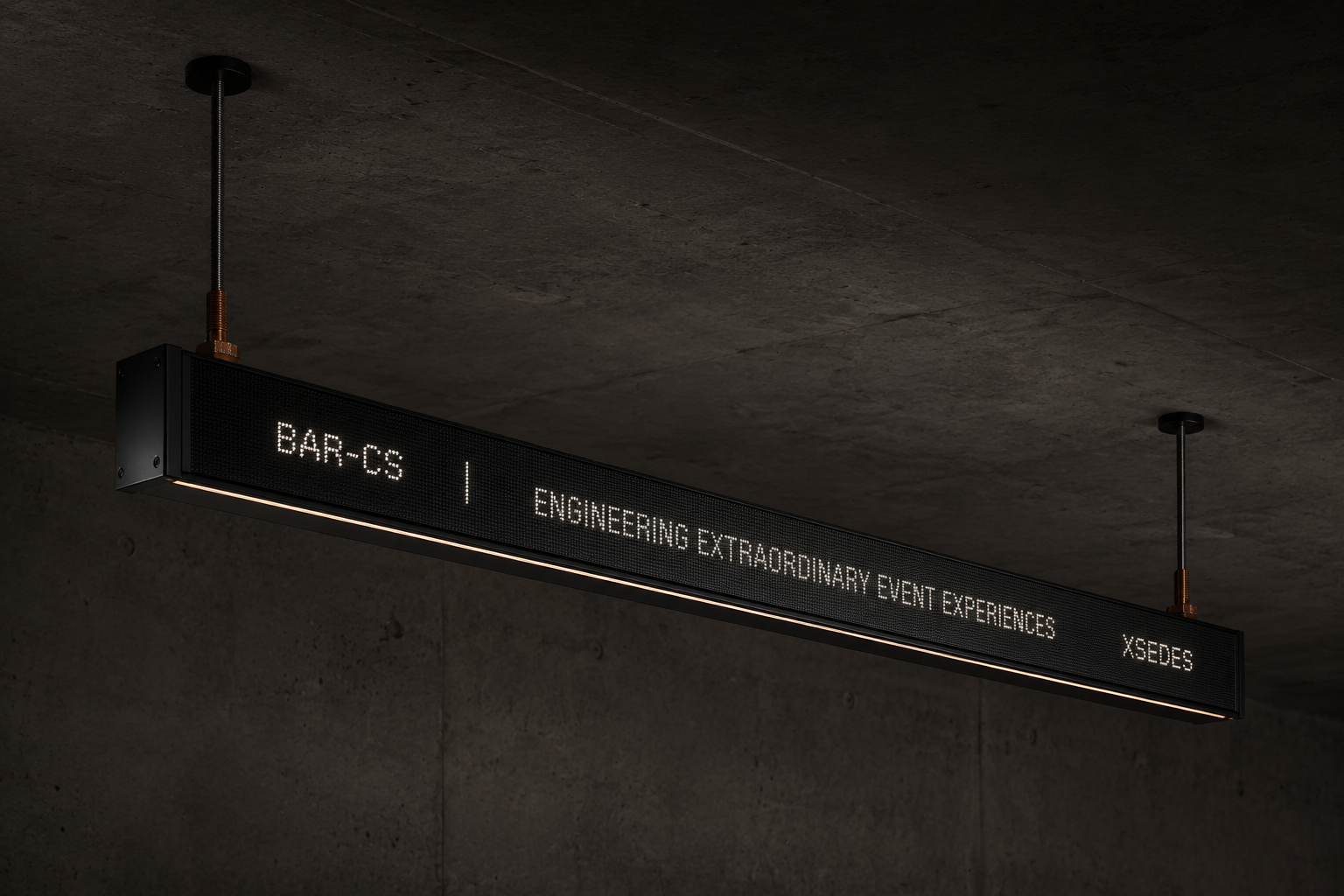

OBLIK Bar linear fixture suspended from concrete on rods with bronze collars and warm underside light

Flagship — Linear Fixture

OBLIK Bar

The most important product in the system. A suspended or wall-mounted linear extrusion, sized like an architectural batten rather than a sign. Nearly every reference in the original brief was a variation of this form.

In situ

Linear fixture, suspended.

Demonstration film of the extrusion, suspension hardware, and underside light — click to play.

2400mmSUSPENSION ROD50

Illustrative dimensions — engineering finals pending

Length1200 / 1800 / 2400mm
Section200 × 50mm extrusion
MountingCeiling rod / wall blade
FinishAnodized Al · Bronze powdercoat
WayfindingStore HeaderShelf StripMenu BoardQueue System

Mount Variants

BAR–SFSingle-face — one active display side, wall or soffit mounted
BAR–DFDouble-face — two opposing active faces, ceiling-suspended, read from either aisle
BAR–CSCeiling suspension — threaded rod pair, exposed conduit entry
BAR–WBWall blade — projecting bracket pair, perpendicular to storefront

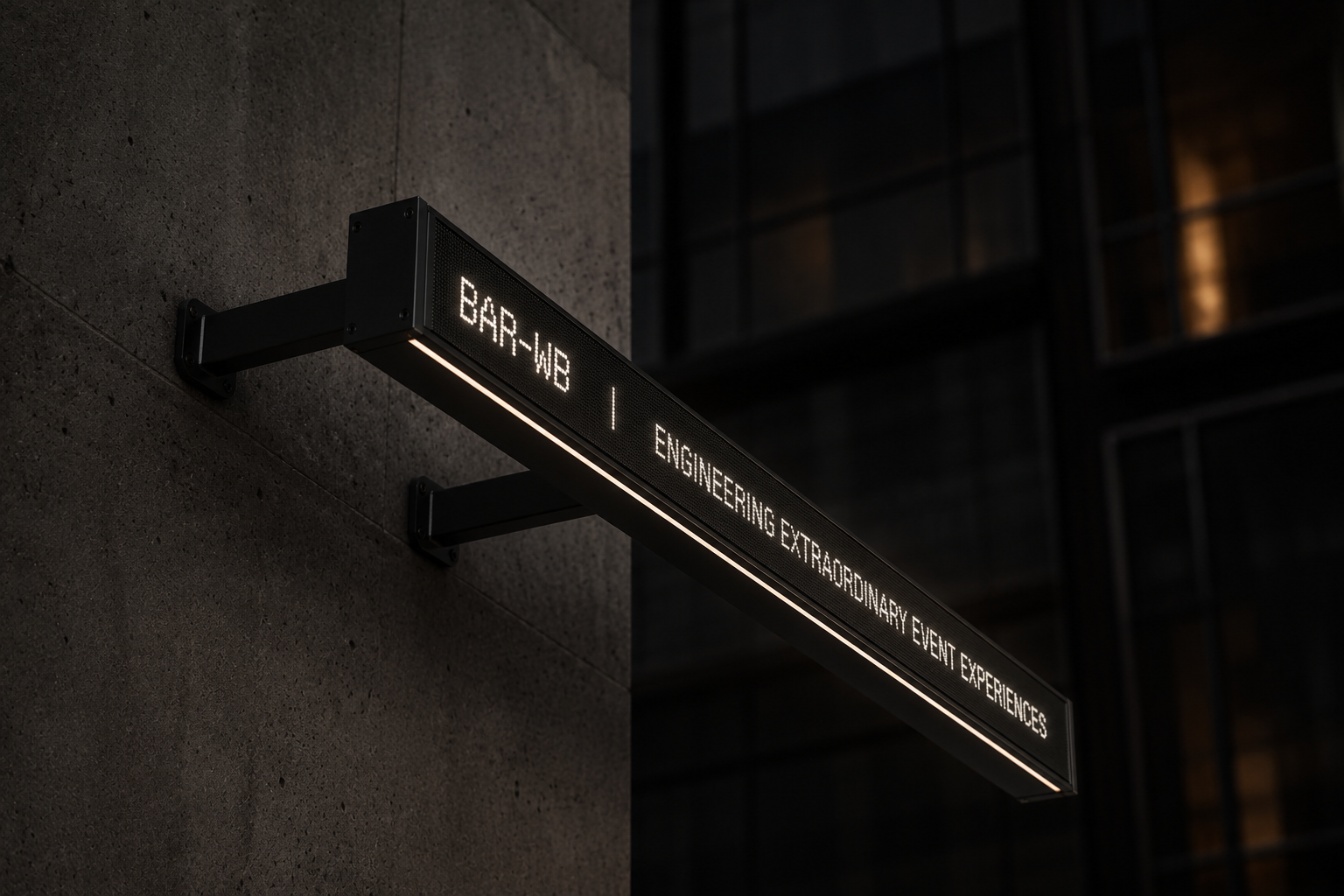

OBLIK Bar wall-blade fixture cantilevered from concrete with warm downlight

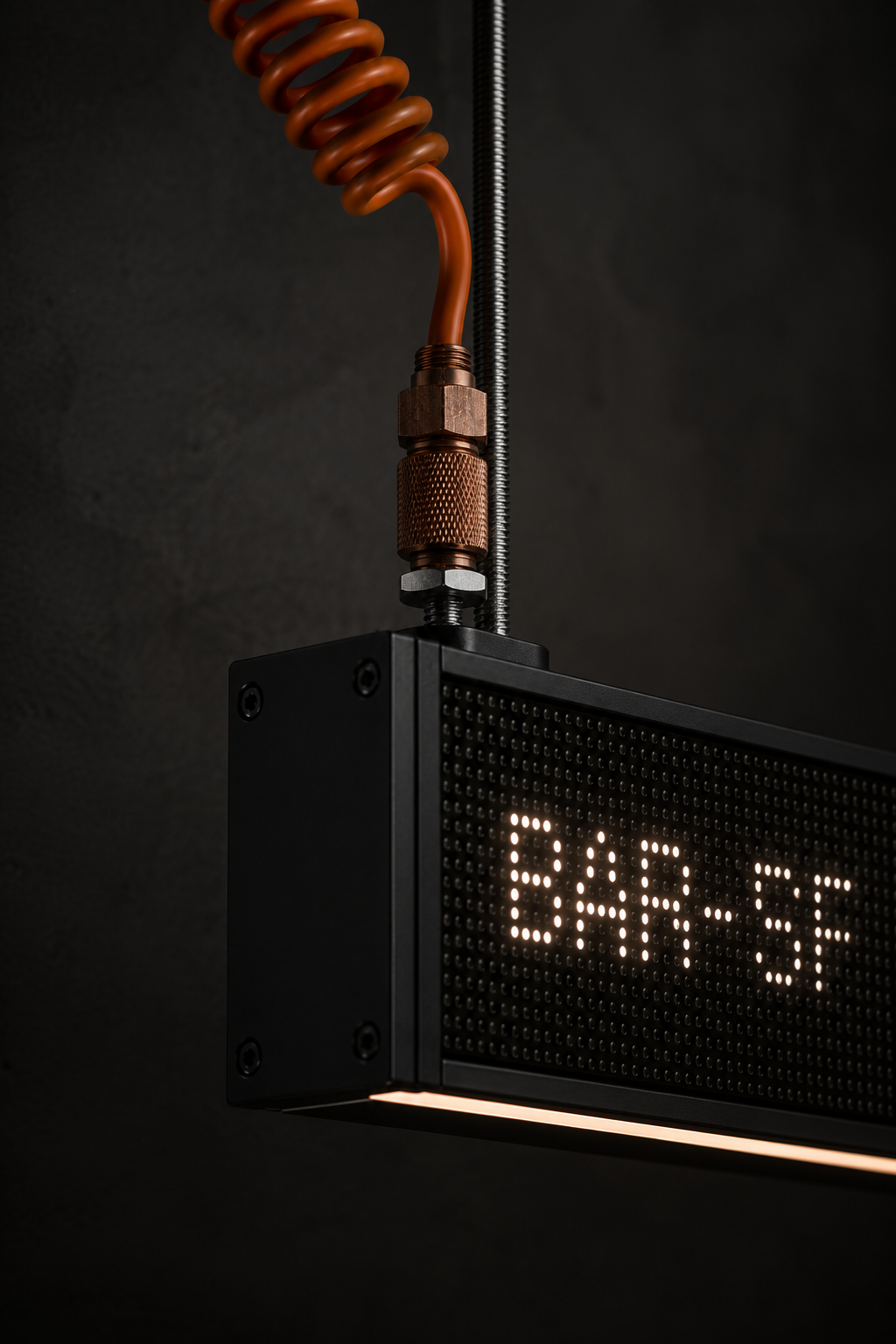

Close detail of OBLIK Bar single-face extrusion with coiled conduit entry and bronze coupler

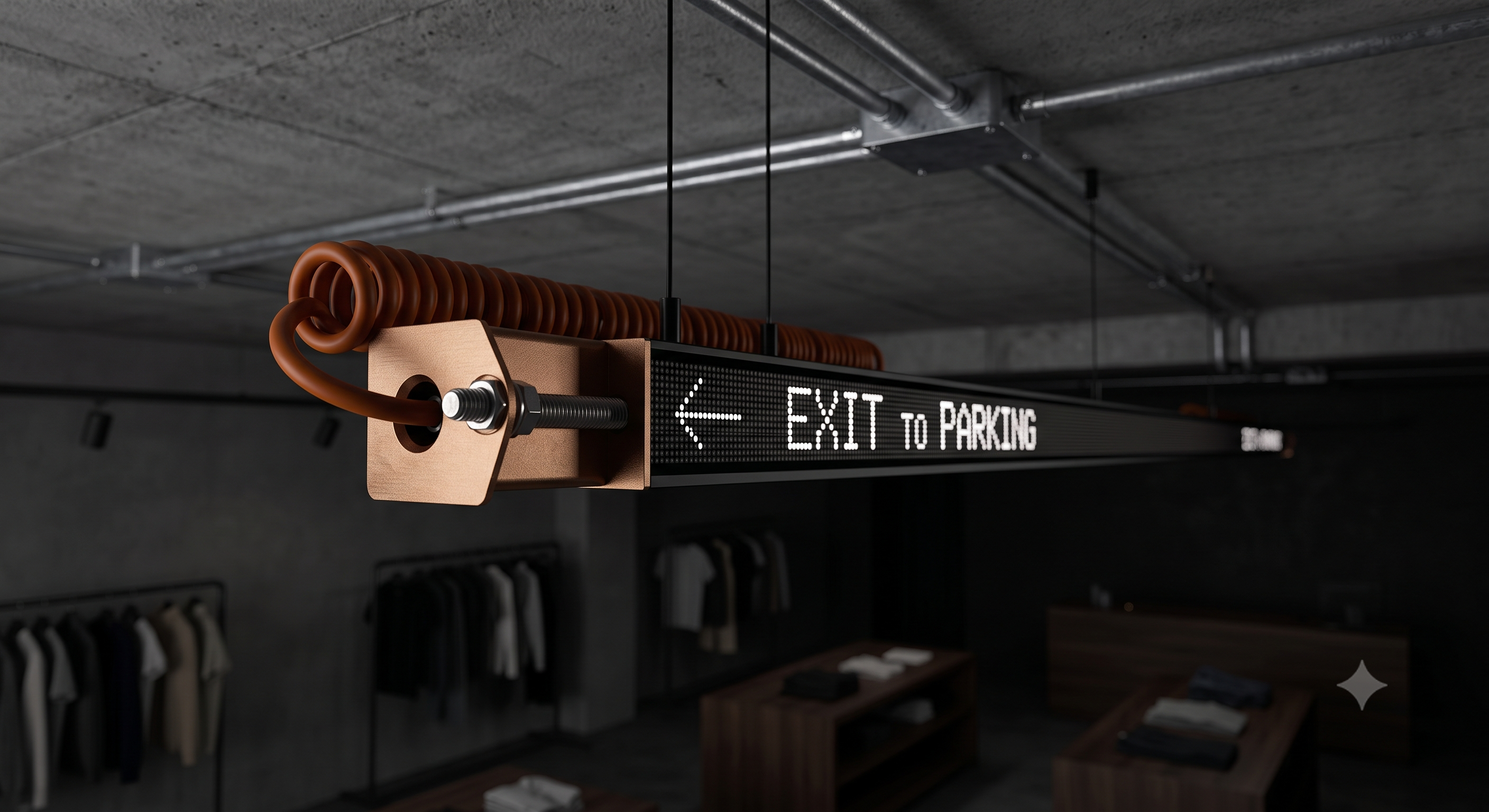

OBLIK Bar suspension fixture with bronze end cap used for wayfinding in a retail interior

Related systems

Specified together. Not sold alone.

OBLIK is sold as a system — one engineering language across five geometries.

ShelfMerchandising — Edge Fixture
SquareWorkhorse — Planar Fixture
CircleIdentity Mark — Radial Fixture
CubeObject — Volumetric Fixture
